Product Description
Product introduction:

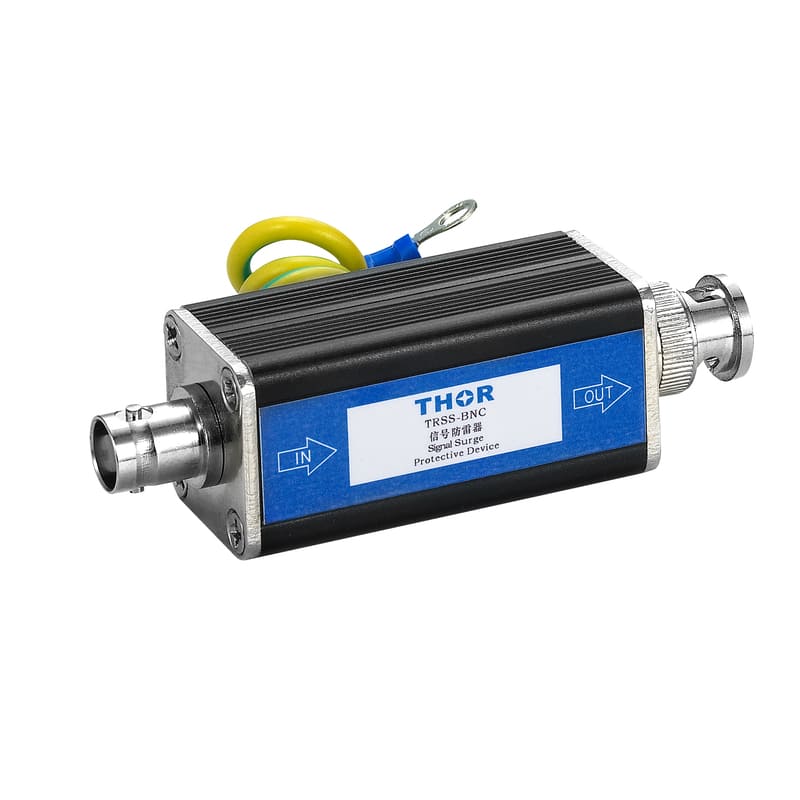

TRSS-BNC series surge protective device (in short:SPD,alias:surge protector, surge arrester) is suitable for such as modem,DDN fax and telephone, which protects the electric network nostshocked by the lightning or surge over voltage.
|
Electrical Characteristics |
|
|
Model and specofocation |
TRSS-BNC |
|
Working voltage |
24V |
|
Max continuous operating voltage Uc |
30V |
|
Voltage protective level Up(V）＜ |
〈60 |
|
Nominal discharge current In(8/20μS) |
10kA |
|
Response time ns |
≤10 |
|
Characteristic impedance |
75Ω |
|
Insertion loss |
≤0.1dB |
|
Configuration dimension |
52×25×25 |
|
Interface mode |
BNC |
|
Operating condition |
Temp:-40℃~+70℃/RH≤95%（25℃）/Sea level elevation≤3km |
|
Remarks |
Other max continuous operating voltage can be customized |
