Protect LED Street lights from lightning surge
-
Convenient in installation
-
Use parallel wiring, attached with L,N and PE cable
-
The maximum discharge current is 10kA

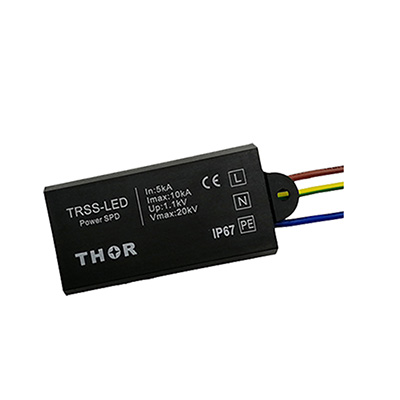

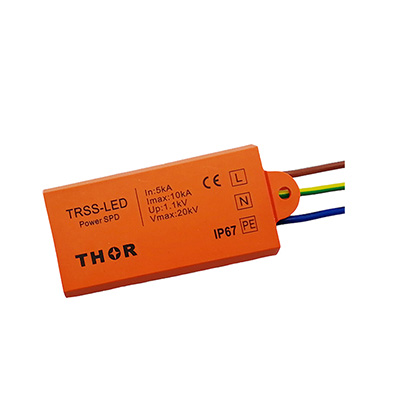

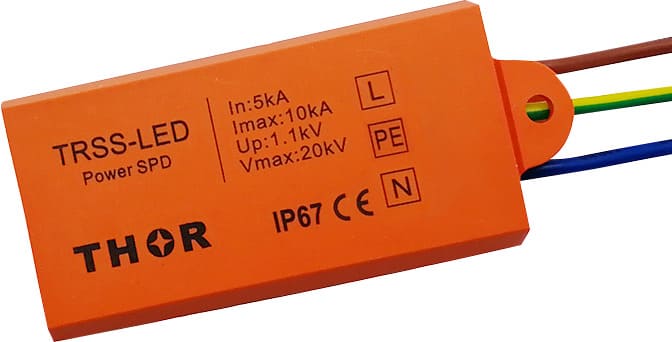

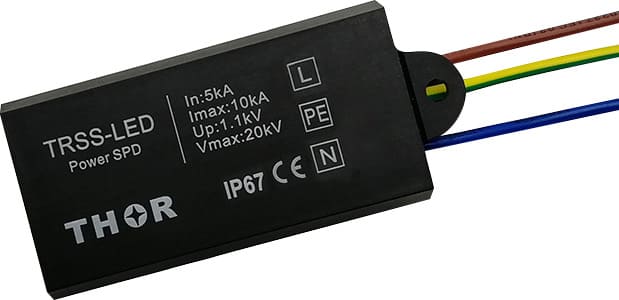

TRSS-LED SPD
 |
 |
Features of THOR Surge Protective Device
LED Street Lights Power SPD: TRSS-LED designed for protecting LED Driver and could be connected perfectly with its input port, sealed enclosure, waterproot and dustproof, IP67 protection grade belongs to Class Ill power SPD. This SPD use common mode, differential mode, full protection with leakage current and cut the overcurrent capabilities. The product size small,81x 37.6x 13.5mm(Dose not contain the connection line), using parallel wiring, attached with L, N and PE cable, very convenientin installing. TRSS-LED able to withstand voltage 20kV, the level of protection isbelow 1.1kV, especially good for protecting LED Street lights form lightning surge damage.
| Parameter/Type | TRSS-LED | |
| Rated voltage | Uₙ | 110— 277V AC |
| Max. Continuous voltage | Uc
|
390V AC |
| Norminal discharge current(8/20μs) | Iₙ | 5KA |
| Max. discharge current(8/ 20μs) | Iₘₐₓ | 10KA |
| Nominal discharge voltage | Vₙ | 10KV |
| Maximum discharge voltage | Vₘₐₓ | 20KV |
| Voltage protection level | Uₚ | 1.1KV |
| Response time | tₐ | < 25ns |
| Cross— section area | 1.5mm² flexible | |
| Operating temperature ranpe | -40℃-+70℃ | |
| Mounting on | Custom | |
| Enclosure material | ABS765A | |
| Size | 81x37.6x 13. Smm | |
| Test standards | EN 61643—11:2012, IEC 61643—11:2011 | |
| Fault indicator | Indicator can be option | |
| Outer casinp protection prade | IP67 | |
| Weight | 57g | |

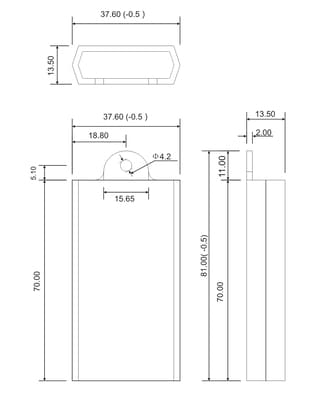

Dimension Drawing |

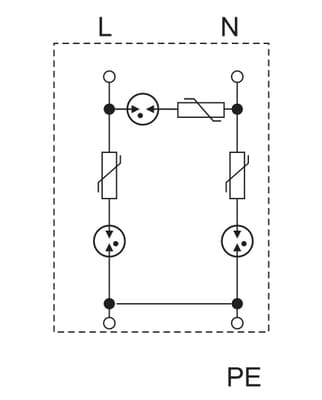

Circuit Diagram |
 |
 |
