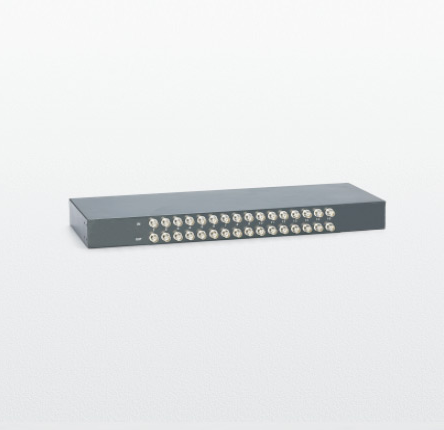

TRSS-BNC-16 Rack-mounted Video Signal Surge Protector

Data:2019-11-16


Product introduction:
THOR -Rseries coaxial signal surge protective device surge arrester, which is suitable for the
computer network system such as the monitoring system of closed-circuit TV, security system, satellite communication system, coaxial signal transmission etc, lt is designed according to the features of the signal transmission system whichis low signal amplitude, hightransmission frequency, weak anti jamming ability and easy to be damaged  by over voltage shocked  by thunder and surge, this product hase lot of coaxialinterfacce,such as BNC.

Electrical Charateristics

Type

TRSS-BNC-16

Max continuous operating voltage Uc(VAC)

12V

Nominal discharge current (8/20μS) ln(kA)

5KA

Voltage protection level Up(Line to line)

<80V

Voltage protection level Up(Line

to ground)

<750V

Transmission rate

16MHZ

Insertion loss

≤0.5dB

Surface Properties

490X125X45mm

Line interface

BNC

Way to lnstall

Series Connection
